Item # bci2006909
The Watts 0789499 has been discontinued
** See similar or replacement items below **

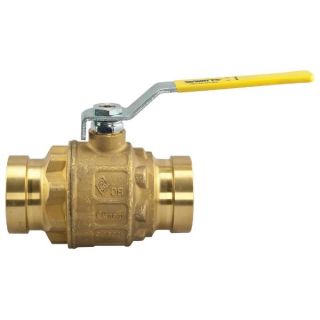

Watts FBV-3C 4" Full Port Ball Valve with Integral Press Fitting End XLC Connection
Model: 0789499
from the FBV-3C Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
FBV-3C 4" Full Port Ball Valve with Integral Press Fitting End XLC Connection
Watts 0789499 Features:
- XL-C Connections
- Designed for types K, L and M hard copper tubing
- Press connection rated to 200psi CWP up to 250 degrees F
- Adjustable stem packing and stem O-Ring seal
- Blowout proof, bottom-loaded stem
- Chrome-plated brass ball
- Conforms to: MSS SP-110
Watts 0789499 Specifications:
- Length: 15-9/16"
- Material: Brass
- Connection Size: 4"
- Connection Type: XL-C
- Weight: 22.05 lbs.
Additional Watts Links
This product is listed under the following manufacturer number(s):
- Watts 0789499*
N/A
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Length
15.563 in.
Water Connection
4"
Characteristics and Features
Material
Brass
Warranty and Product Information
Lead Leaching Certified NSF/ANSI 61
N/A (Regulation does not apply)
