Item # bci3314739
The Rohl LOKIT50LMSTN has been discontinued
** See similar or replacement items below **

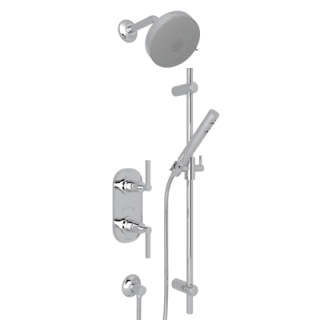

Rohl Avanti Shower Trim Package with 2.0 GPM Multi Function Shower Head
Model: LOKIT50LMSTN
from the Avanti Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
Rohl LOKIT50LM Features:
- Covered by Rohl's 2 year limited warranty
- Multi function shower head
- Rough in valve sold separately
- Package includes: shower head, hand shower, slide bar, supply elbow, hose, and thermostatic valve trim
- All hardware required for installation included
Valve Trim Specifications:
- Swinging temperature dial allows for pin-point water control
- Valve Trim Dimensions: 8-1/2" H x 4" W
- Includes pre-set safety stop with override capability
- Rough-in valve is sold separately (when adding to cart, valve will be offered)
Shower Head Specifications:
- Multi function shower head with 3 spray patterns
- Shower head rotates 45 degrees on a swivel ball assembly
- Flow Rate: 2.0 gallons-per-minute
- Shower Head Width: 5-1/2"
- Shower Arm Length: 6"
Hand Shower Specifications:
- Overall Length: 29-5/8"
- Hand Shower Height: 7-1/2"
- Hand Shower Width: 1-3/16"
- Hand Shower Flow Rate: 2.0 gallons-per-minute
- Connection Size: 1-2"
- Hose Length: 59"
- Slide Bar Length: 24-3/8" (area accessible to bracket)
- Slide Bar Depth: 3-1/4"
Additional Rohl Links
This product is listed under the following manufacturer number(s):
- Rohl LOKIT50LMAPC*
Polished Chrome - Rohl LOKIT50LMSTN*
Satin Nickel
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Flow Rate (GPM)
2
Handshower Flow Rate
2
Hose Length
59 in.
Shower Arm Reach
6.5625 in.
Showerhead Flow Rate (GPM)
2
Showerhead Height
3.25 in.
Showerhead Width
5.5 in.
Valve Trim Height
8.5 in.
Valve Trim Width
4 in.
Water Connection
1/2"
Included Components
Diverter Included
Yes
Handles Included
Yes
Handshower Included
Yes
Hose Included
Yes
Installation Hardware Included
Yes
Integrated Diverter
Yes
Shower Arm Included
Yes
Shower Head Included
Yes
Slide Bar Included
Yes
Valve Included
No
Valve Trim Included
Yes
Volume Control
No
Wall Supply Included
Yes
Characteristics and Features
Diverter Location
Valve Trim
Faucet Type
Shower System
Handle Material
Brass
Handle Style
Lever
Installation Type
Wall Mounted
Material
Brass
Number Of Bodysprays
0
Number Of Handles
2
Scald Guard
Yes
Showerhead
Multi Function
Showerhead Material
ABS
Showerhead Shape
Round
Spray Nozzles
153
Spray Pattern
Full, Spray
Spray Settings
3
Theme
Modern
Valve Trim Material
Brass
Valve Type
Thermostatic
Water Connection Type
NPT
Warranty and Product Information
Collection
Avanti
Manufacturer Warranty
2 Year Limited
