Item # bci912414

Little Giant Big John 1/3 HP 46 GPM Submersible Sump Pump with Mechanical Float Switch and 10ft. Cord

Model: 506171

$338.84
Finish: Choose Finish
  • Steel
    Steel
    $338.84
    Special Order

Free Shipping!

Special Order

Product Overview

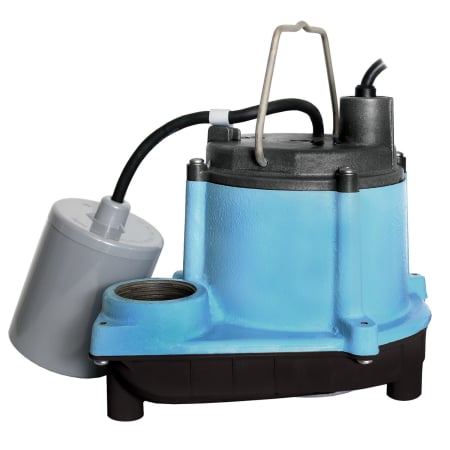

Big John 1/3 HP 46 GPM Submersible Sump Pump with Mechanical Float Switch

For residential and light commercial use, the 1/3 HP, automatic submersible sump pump provides efficient and reliable service. Pumps feature a 1-1/2" discharge with 18' maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.

  • 1/3 HP shaded pole motor with overload protection
  • Designed for continuous duty
  • Epoxy coated cast iron housing
  • 1-1/4" (31.7 mm) adapter and 3/4" (19 mm) garden hose adapter available
  • Carbon/ceramic shaft seal
  • Upper and lower sintered sleeve bearings
  • Multiple switch options for automatic operation
  • Multiple power cord lengths available
  • UL / CSA listed

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Cord Length
10 in.
Depth
9.5 in.
Discharge Diameter
1.5 in.
Flow Rate by Feet of Head
12.5 gal / 15 ft, 29 gal / 10 ft, 46 gal / 5 ft
Height
7.3 in.
Length
9.5 in.
Maximum Head Height
18 in.
Minimum Head Height
5 in.
Product Weight
17.5 lbs.
Shut Off Height
18 in.
Shut Off Pressure
7.8
Water Connection
1-1/2"
Water Pressure (Max)
7.8 PSI
Width
7.3 in.

Characteristics and Features

Automatic
Yes
Configuration
Submersible Pump
Impeller Material
Nylon
Material
Cast Iron
Material Casing
Iron, Polycarbonate
Material Housing
Iron
Shutoff Head in Feet
18
Submersible
Yes
Switch Type
Mechanical Float
Water Connection Type
NPT

Electrical and Operational Information

Amperage
9
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.33, 0.34
Maximum Fluid Temperature
140 °F
Voltage
115
Wattage
720

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL, CSA
