Item # bci3164607

The Grundfos 98420223 has been discontinued

** See similar or replacement items below **

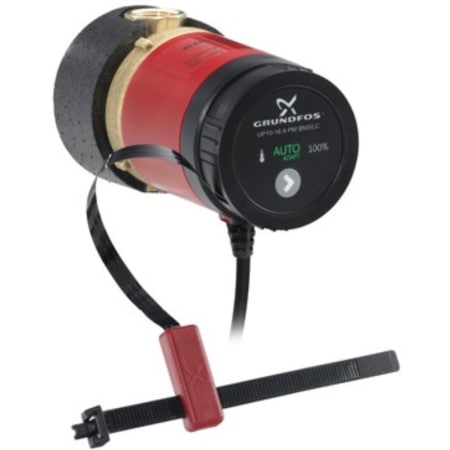

Grundfos Comfort 1/25 Horsepower Bronze Hot Water Recirculation Pump

Model: 98420223

from the Comfort Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Grundfos 98420223 Features:

  • Silent operation
  • Bronze pump housing eliminates corrosion
  • 1-phase motor
  • No additional motor protection is required

Grundfos 98420223 Specifications:

  • Height: 4"
  • Width: 6-1/5"
  • Length: 7-1/2"
  • Liquid temperature range: 36 to 203 Degrees F
  • Maximum operating pressure: 145 psi
  • Type of connection: FNTP
  • Pipe connection: 1/2"
  • Port-to-port length: 7-1/2"
  • Max. power input: 5 to 8-1/2 watts
  • Rated power: 1/25 HP
  • Main frequency: 60 Hz
  • Rated voltage: 115 V
  • Capacitor size - run: 10 F/180 V
  • Cord Length: 6'

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Height
4 in.
Length
7.5 in.
Product Weight
15 lbs.
Width
6.2 in.

Characteristics and Features

Material
Bronze

Electrical and Operational Information

Electrical Phases
1
Frequency
60 Hertz
Horsepower
.04
Maximum Fluid Temperature
203 °F
Maximum Operating Pressure (PSI)
145
Voltage
115
Wattage
5, 8.5
