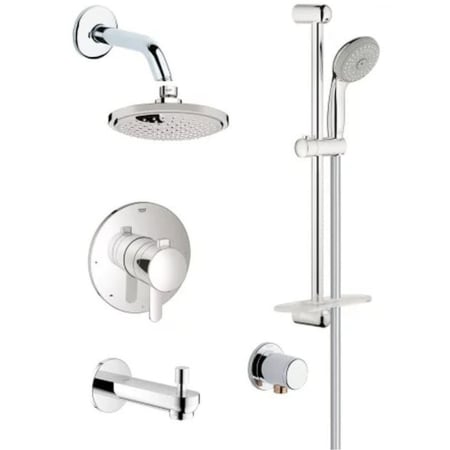

All products in this package are covered under Grohe's limited lifetime warranty
- 19 881 Pressure Balanced Valve Trim
- 27 492 Rain Shower Head
- 28 436 Slide Bar & Handshower
- 27 414 Shower Arm
- 28 627 Wall Supply
- 13 273 Diverter Tub Spout
- 03 671 Twin Ell
- 35 026 Rough-In Valve
19 881 Pressure Balanced Valve Trim:
- Dual function - one handle controls temperature of water and one handle controls volume of water and transfer of water flow
- 2-way diverter transfers water flow from shower head to handshower
- 100° integrated scald guard button on valve trim
- Features Grohe's SilkMove® cartridge
- Trim Diameter: 6-11/16"
- Depth: 3-3/16" - 4-3/8" (adjustable from wall)
- Required rough-in valve is included

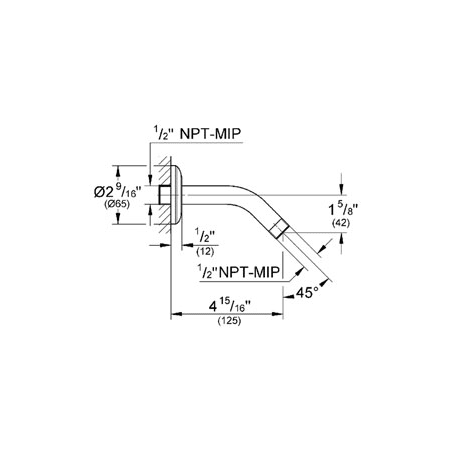

27 492 Rain Shower Head / 27 414 Shower Arm:
- Features one spray pattern - Rain
- Equipped with Grohe's SpeedClean and DreamSpray technologies
- Rotates 30° in any direction for maximum coverage
- Flow Rate: 2.5 GPM (gallons-per-minute)
- Shower Head Diameter: 7-1/16"
- Shower Head Height: 2-7/8"
- Shower Arm Reach: 4-15/16"
28 436 Slide Bar & Handshower:
- Handshower features four spray patterns
- Slide bar features a swivel holder to adjust angle of handshower
- Integrated soap dish increases storage space in the shower
- Handshower features Grohe's SpeedClean and DreamSpray technologies
- Handshower Flow Rate: 2.5 GPM (gallons-per-minute)
- Slide Bar Length: 24-7/16" (adjustable center-to-center distance between mounting holes)
- Hose Length: 69"
- Slide bar package includes wall supply (28 627)

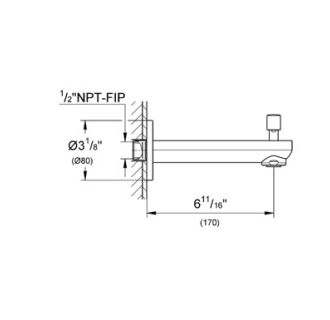

13 273 Diverter Tub Spout:
- Classic diverting tub spout allows for more options by diverting at the valve trim and the spout
- Features flow control
- Spout Reach: 6-11/16"
- Connection Type: 1/2" NPT-FIP
This product is listed under the following manufacturer number(s):
- Grohe GSS-Europlus-TPB-06-000
