The Grohe GSS-Authentic-DTH-05-000 has been discontinued
** See similar or replacement items below **
All products in this package are covered under Grohe's limited lifetime warranty

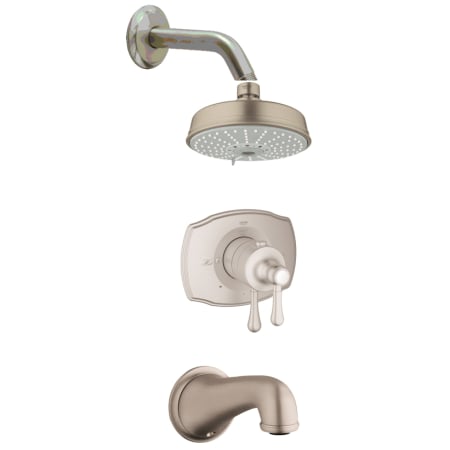

- 19 825 Thermostatic Valve Trim
- 27 130 Multi-Function Shower Head
- 27 011 Shower Arm
- 13 615 Non-Diverter Tub Spout

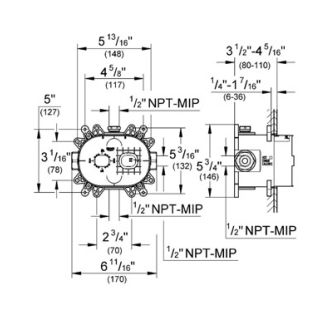

- 35 026 Rough-In Valve
19 825 Thermostatic Valve Trim:
- Dual function - one handle controls temperature of water and one handle controls volume of water and transfer of water flow
- 2-way diverter transfers water flow from shower head to tub spout
- 100° integrated scald guard button on valve trim
- One handle for volume of water, one handle for temperature control
- Features Grohe's SilkMove® cartridge and TurboStat® technology
- Trim Dimensions: 5-11/16" H x 7-1/2" W
- Depth: 4-15/16" - 6-1/8" (adjustable from wall)
- Lever handles are ADA compliant
- Required rough-in valve is included

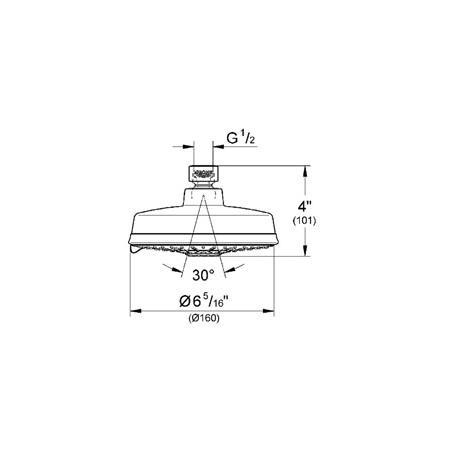

27 130 Multi-Function Shower Head / 27 011 Shower Arm:
- Features four spray patterns - Rain, Jet, Pure, and Champagne Spray
- Equipped with Grohe's SpeedClean technology
- Rotates 30° in any direction for maximum coverage
- Flow Rate: 2.5 GPM (gallons-per-minute)
- Shower Head Diameter: 6-5/16"
- Shower Head Height: 4"
- Shower Arm Reach: 6-1/4"

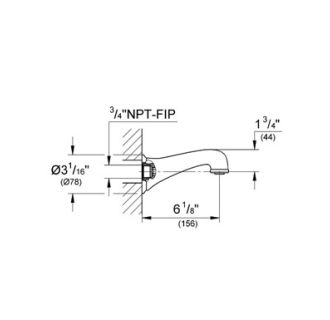

13 615 Non-Diverter Tub Spout:
- Non-diverter tub spout allows for water flow transfer at the valve trim
- Spout Reach: 6-1/8"
- Connection Type: 3/4" NPT-FIP
This product is listed under the following manufacturer number(s):
- Grohe GSS-Authentic-DTH-05-EN0*
- Grohe GSS-Authentic-DTH-05-ZB0*
Oil Rubbed Bronze
- Grohe GSS-Authentic-DTH-05-BE0*
- Grohe GSS-Authentic-DTH-05-000*
*Denotes a finish or option that has been discontinued.
