Item # bci3954137
The Elkay LK535AT14L2 has been discontinued
** See similar or replacement items below **

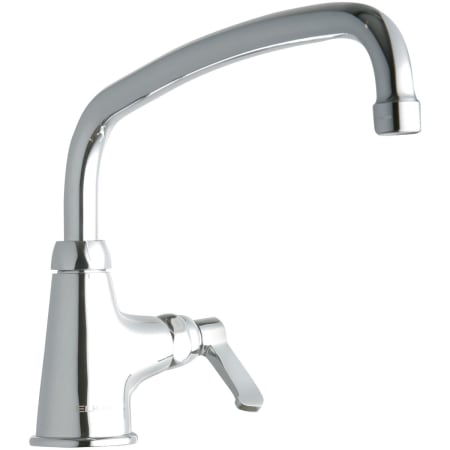

Elkay 1.5 GPM Deck Mounted Single Lever Handle Utility Faucet with Brass Handles
Model: LK535AT14L2
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Elkay LK535AT14L2 Features:
- Covered under Elkay's 5 year limited residential warranty and a 5 year commercial warranty
- ADA compliant: Faucet is ADA compliant
- Lead-free compliant: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products
- Low flow: Includes water-saving features
- Solid brass construction: Built for long-term durability
- Includes vandal-resistant aerator: Comes installed with 1.5 GPM water-saving and a vandal-resistant aerator with 2.2 and .5 GPM aerator inserts
- Spout swing restrictor pin: Special pin locks faucet into stationary position for required applications

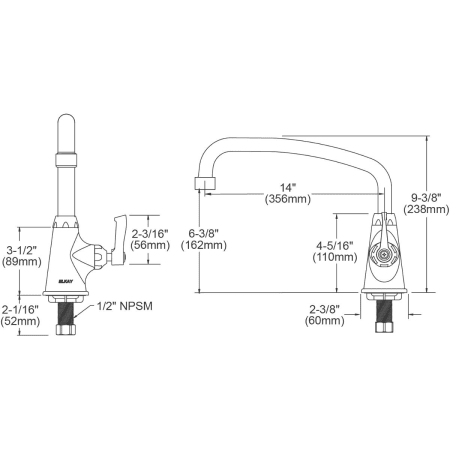

Elkay LK535AT14L2 Specifications:
- Height: 9-3/8" (top to bottom)
- Maximum Deck Thickness: 2-1/16"
- Spout Height (deck to center of faucet outlet): 6-3/8"
- Spout Reach: 14" (faucet base to spout outlet)
- Number of Faucet Holes: 1
- Connection Size: 1-1/8"
- Flow Rate (GPM): 1.5 (gallons-per-minute)
Additional Elkay Links
This product is listed under the following manufacturer number(s):
- Elkay LK535AT14L2*
Chrome
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Faucet Centers
0 in.
Flow Rate (GPM)
1.5
Height
9.375 in.
Max Deck Thickness
2.0625 in.
Spout Height
6.375 in.
Spout Reach
14 in.
Water Connection
1-1/8"
Included Components
Handles Included
Yes
Valve Included
Yes
Characteristics and Features
Bridge Faucet
No
Electronic
No
Faucet Holes
1
Handle Material
Brass
Handle Style
Lever
Installation Type
Deck Mounted
Material
Brass
Mounting Type
Single Hole
Number Of Handles
1
Spout Type
Swivel
Theme
Traditional
Valve Type
Ceramic Disc
Water Connection Type
UNEF
Warranty and Product Information
ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.18.1
CA Drought Compliant
Yes
Certifications
ASME, CSA
Commercial Warranty
5 Year Limited
Country Of Origin
China
CSA Code
B125.1
Lead Leaching Certified NSF/ANSI 61
Yes
Manufacturer Warranty
5 Year Limited
