Item # bci2371494

The Build Smart Kits MIRU1812/DB2596LF-SS has been discontinued

** See similar or replacement items below **

Build Smart Kits Combo: Mirabelle 18-3/4" Porcelain Undermount Sink with Delta Windemere Centerset Faucet and Drain

Model: MIRU1812/DB2596LF-SS

Discontinued
    We still have product details and accessories, scroll down to see them!

    Product Overview

    This customized Smart Kit brings two of the industry's top manufacturers together to create a uniquely luxurious; high quality bathroom package.

    Sink Features:

    • Fully covered under manufacturer warranty for a year after purchase
    • Sink is constructed of a high quality porcelain material
    • The sinks rectangular design will complement most any bathroom
    • Installs in an undermount configuration
    • Drain located in rear of basin
    • Sink is equipped with a built-in overflow drain
    • All hardware required for installation included

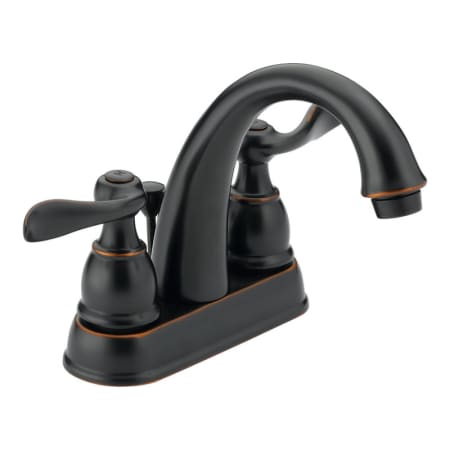

    Faucet Features:

    • Faucet body and handles are constructed of solid brass
    • Fully covered under Delta's limited lifetime faucet warranty
    • Delta's faucet finishes are engineered to resist corrosion and tarnishing
    • Double handle operation - handles rest on 1/4 turn valve seats
    • Mounts in a centerset (4" centers) configuration
    • Matching pop-up drain assembly included
    • ADA compliant, Low Lead compliant
    • WaterSense┬« Certified faucet

    Sink Specifications:

    • Height: 7-1/4" (measured from bottom of sink basin to the top of the rim)
    • Overall Width: 14-4/7" (measured from the back outer rim to the front outer rim)
    • Overall Length: 21" (measured from the left outer rim to the right outer rim)
    • Basin Width: 12-1/5" (measured from the back inner rim to the front inner rim)
    • Basin Length: 18-2/3" (measured from the left inner rim to the right inner rim)
    • Basin Depth: 7-1/8" (measured from the center of basin to the rim)
    • Faucet Holes: 0 (number of per-drilled faucet holes on sink)
    • Drain Outlet Connection: 3-1/2"
    • Minimum Cabinet Base: 23" (space recommended to install sink)

    Faucet Specifications:

    • Overall Height: 5-7/8" (measured from mounting surface to the tallest part of the faucet)
    • Spout Height: 3-1/2" (measured from mounting surface to the spout outlet)
    • Spout Reach: 5-1/8" (measured from the center of faucet base to center of spout outlet)
    • Faucet Holes: 3 (number of holes required for faucet installation)
    • Flow Rate: 1.5 gallons-per-minute
    • Installs onto decks up to 1-1/8" thick
    • All installation hardware (including valve) is included

    This product is listed under the following manufacturer number(s):


    *Denotes a finish or option that has been discontinued.

    Dimensions and Measurements

    Basin Depth
    7.125 in.
    Basin Length
    18.688 in.
    Basin Width
    12.188 in.
    Faucet Height
    5.875 in.
    Flow Rate (GPM)
    1.5
    Length
    21, 21.0625 in.
    Max Deck Thickness
    1.125 in.
    Minimum Cabinet Size
    23 in.
    Sink Height
    7.25 in.
    Sink Length
    21.063 in.
    Sink Width
    14.563 in.
    Spout Height
    3.531 in.
    Spout Reach
    5.125 in.
    Width
    14.5, 14.5625 in.

    Included Components

    Drain Assembly Included
    Yes
    Faucet Included
    Yes
    Handles Included
    Yes
    Installation Hardware Included
    Yes
    Pop-Up Included
    Yes
    Valve Included
    Yes

    Characteristics and Features

    Configuration
    Bath Sink and Faucet
    Drain Placement
    Rear
    Farmhouse
    No
    Faucet Holes
    0
    Faucet Material
    Brass
    Faucet Mounting Type
    Centerset
    Faucet Type
    Bathroom Sink Faucet
    Handle Material
    Metal
    Handle Style
    Lever
    Installation Type
    Undermount
    Material
    Vitreous China
    Mounting Type
    Centerset
    Number Of Basins
    1
    Number Of Handles
    2
    Overflow
    Yes
    Sink Material
    Vitreous China
    Sink Shape
    Rectangular
    Spout Type
    Fixed
    Theme
    Modern
    Valve Type
    Ceramic Disc

    Warranty and Product Information

    ADA
    Yes
    Faucet Manufacturer
    Delta
    Faucet Model
    B2596LF
    Low Lead Compliant
    Yes
    Sink Manufacturer
    Mirabelle
    Sink Model
    MIRU1812
