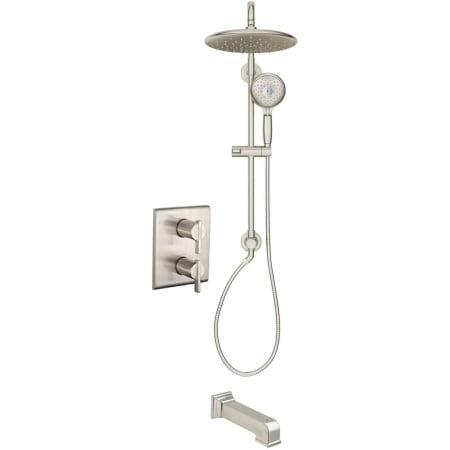

American Standard Times Square Thermostatic Shower System with Shower Head, Hand Shower, Slide Bar, Shower Arm, Hose, Wall Supply Elbow, Tub Spout, Diverter, and Valve Trim

All products in this package are covered under American Standard's limited lifetime warranty

What's Included:

• T184.740 thermostatic valve trim
• R522S shower valve
• 9035.804 shower system
• 8888.089 tub spout

American Standard T184.740 Features:

• Trim constructed of brass - ensuring durability and providing aesthetic appeal
• Premier finishing process - finishes will resist rusting and corrosion through every day use
• Wax thermostatic unit allows valve to move between hot and cold maintaining a constant water temperature
• Hot and cold supplies flow through a spring-loaded valve to prevent cross flow
• Thermostatic valve cartridge with scald guard
• Secure mounting assembly
• All hardware required for installation is included
• Swinging temperature dial allows for pin-point water control
• Faucet Centers: 3-7/8"
• Escutcheon (Trim Plate) Height: 8-1/4”
• Escutcheon (Trim Plate) Width: 6-11/16”

American Standard R522S Features:

• Valve constructed from solid brass
• Designed for IPS inlet/outlet connections
• Integrated service stops allow for turning off water at the valve
• Sturdy mounting bracket included - preventing valve rocking
• Back-to-back installation capability
• 2 individual functions and 1 shared function

American Standard 9035.804 Features:

• System includes 11" rain shower head, 4-function hand shower, push-button diverter, 25" slide bar with Easy Glide tab, 15" shower arm, 69" metal shower hose, adhesive tape and screws
• Enjoy using shower head and hand shower, alone or together
• Rain shower head features single-function drench spray
• Hand shower features Drench, PowerWash, Sensitive, and Massage spray functions
• AquaToggle to easily switch between sprays with one hand
• Easy Glide slide bar adjusts for the perfect hand shower height
• Rubber nozzles wipe clean with your fingertip
• Shower Head Flow Rate: 2.5 gallons-per-minute
• Shower Head Height: 3-3/16" (top to bottom)
• Shower Head Width: 11" (left to right)
• Shower Arm Length: 14-7/8"
• Hose Length: 69"
• Hand Shower Flow Rate: 2.5 gallons-per-minute
• Hand Shower Type: Multi-Function
• Shower system includes wall supply for hand shower

American Standard 8888.089 Features:

• Tub Spout Reach: 7-1/4"
• 1/2" female supply connection
• Ultra-secure mounting assembly
• All hardware required for installation is included
