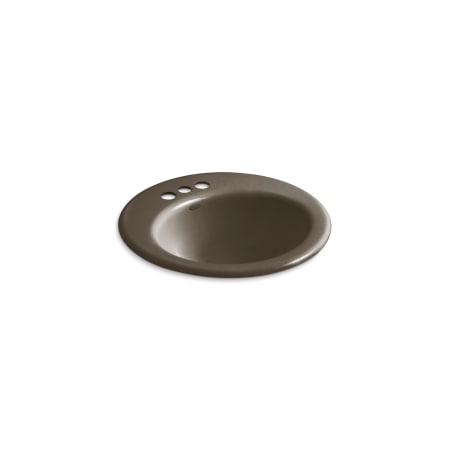

Kohler Radiant 19" Cast Iron Drop-In Bathroom Sink with Overflow
Model: K-2917-4-0
from the Radiant Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
Kohler K-2917-4-LQ Features:
- Covered under Kohler's limited lifetime warranty for cast iron components
- Round basin gives a simple yet elegant style to the bathroom
- Design is ideal for small spaces
- Constructed of enameled cast iron, combining the durability of cast iron with the aesthetics of a baked-on enamel finish
- Rear drain location increases workspace area in the sink as well as storage space underneath
- Equipped with overflow drain - works in tandem with primary drain to prevent water spillage and overflows
- All hardware needed for installation is included
Kohler K-2917-4-LQ Specifications:
- Overall Length: 19" (left to the right of sink)
- Overall Width: 19" (front to back of sink)
- Overall Height: 8-5/8" (top to bottom of sink)
- Basin Length: 14" (left to the right of basin)
- Basin Width: 12" (front to back of basin)
- Basin Depth: 5" (top to bottom of sink basin)
- Faucet Centers: 4"
Additional Kohler Links
This product is listed under the following manufacturer number(s):
- Kohler K-2917-4-20*
Suede - Kohler K-2917-4-0*
White
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Basin Depth
5 in.
Basin Length
14 in.
Basin Width
12 in.
Drain Connection
1.69 in.
Faucet Centers
4 in.
Faucet Hole Size
1.375 in.
Height
8.625 in.
Length
19 in.
Minimum Cabinet Size
21 in.
Nominal Length
19 in.
Nominal Width
19 in.
Width
19 in.
Included Components
Drain Assembly Included
No
Faucet Included
No
Installation Hardware Included
Yes
Shroud Included
No
Characteristics and Features
Basin Split
Single Basin
Corner Sink
No
Drain Placement
Center, Rear
Faucet Holes
3
Installation Type
Drop In
Material
Cast Iron
Number Of Basins
1
Overflow
Yes
Sink Shape
Circular, Oval
Theme
Traditional
Warranty and Product Information
Approved for Commercial Use
Yes
ASME Code
A112.19.1
Certifications
CSA, ANSI, ASME
Collection
Radiant
Country Of Origin
USA
CSA Code
B651, B45.2
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
