Emtek Baden Right Handed Sectional Single Cylinder Keyed Entry Handleset with Helios Interior Lever
Model: 4820HLOUS19RH
Flat Black$370.4019 In Stock
Oil Rubbed Bronze$370.4015 In Stock
Polished Chrome$370.40Special Order
Polished Nickel$370.40Special Order
Satin Brass$370.409 In Stock
Satin Nickel$370.4011 In Stock
Unlacquered Brass$391.20Special Order

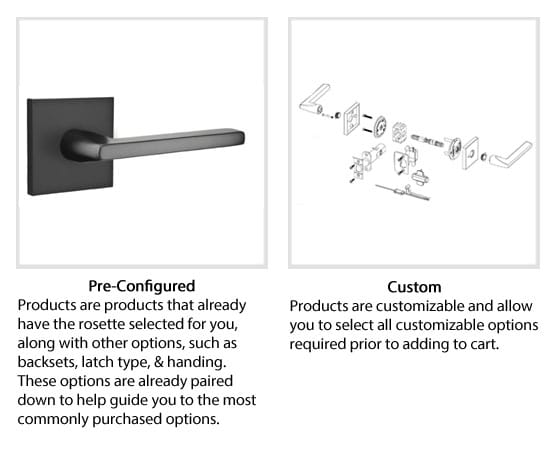

Configuration: Pre-Configured
Emtek Configuration
Backset
The backset of your door is the measurement from the edge of the door to the center of the bore hole. Some products have an adjustable backset latch; however this product does require a designation.
Free Keying Option
Select "Keyed Alike" to use the same key on multiple locks, "Keyed Different" for unique keys, or enter a key code (Typically a 5 digit number) to match this lock to pre-owned locks. Locksmiths can identify key codes on pre-owned locks.
Latch Type
Most residential doors are mortised for either a round corner or square corner latch. Drive-in latches do not have a faceplate and are generally used on hollow doors.
Product Overview
All Emtek items are made to order
Image shown may vary slightly from actual product
Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
- Tested to exceed ANSI/BHMA Grade 3 security requirements
- Constructed of high quality brass for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Emtek's limited lifetime manufacturer warranty Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
- Backset: 2-3/4" or 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/4" to 2-1/8"
- Handing: Right
- Latch Faceplate: Round Corner or Square Corner
- Cylinder: 5 Pin C
- Mounting Center to Center: 5-1/2"
- Grip Center to Center: 8-5/8"
- Overall Height: 16-3/8"
- Handle Projection: 2-1/2"
- Trim Height: 16-3/8"
- Trim Width: 2-1/2"
- Interior Handle Length: 5"
- Interior Handle Projection: 2-1/8"
- Interior Trim Height: 2-1/2"
- Interior Trim Width: 2-1/2"
Additional Emtek Links
This product is listed under the following manufacturer number(s):
- Emtek 4820HLOUS19RH
Flat Black - Emtek 4820HLOUS10BRH
Oil Rubbed Bronze - Emtek 4820HLOUS26RH
Polished Chrome - Emtek 4820HLOUS14RH
Polished Nickel - Emtek 4820HLOUS4RH
Satin Brass - Emtek 4820HLOUS15RH
Satin Nickel - Emtek 4820HLOUS3NLRH
Unlacquered Brass
