Item # bci2804376

The EdgeStar IB120SS has been discontinued

** See similar or replacement items below **

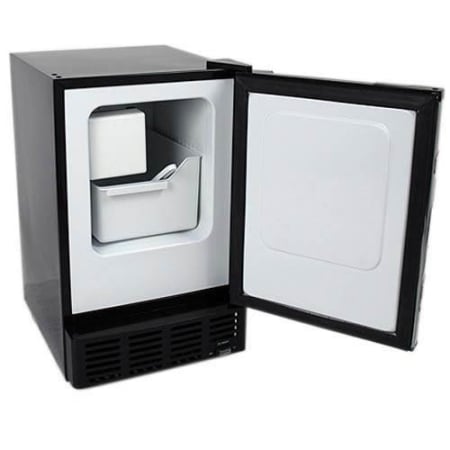

EdgeStar 15 Inch Wide 6 Lbs. Capacity Built-In Ice Maker with 12 Lbs. Daily Ice Production

Model: IB120SS

Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Features:

  • Daily Ice Production: This compact unit can squeeze into your boat or RV while also pumping out up to 12 lbs. of ice per day

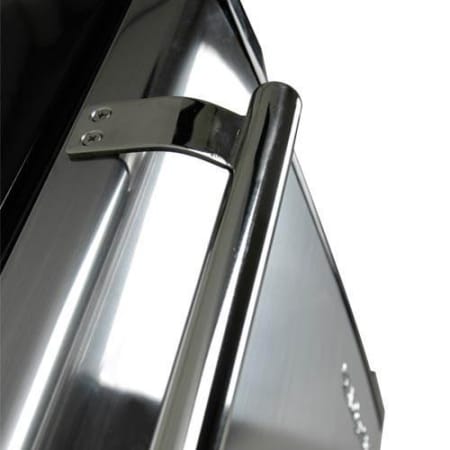

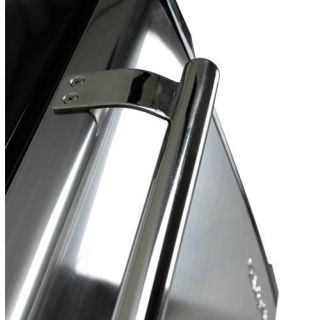

  • Attractive Design: The stainless steel door and black body are a great fit in any décor

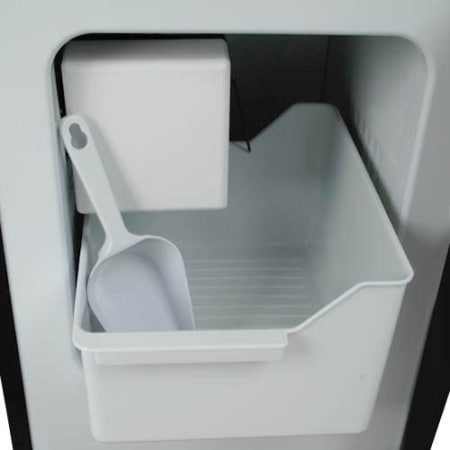

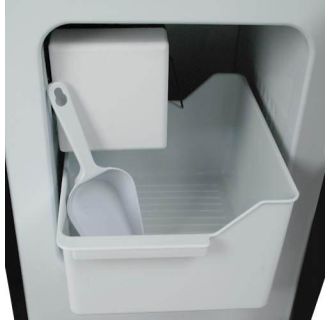

  • Easy Installation: A removable ice reservoir holds up to 6 lbs. of ice and makes installation a snap
  • Easy Operation: A straightforward on/off switch activates the production of ice and once full, the unit will shut itself off
  • Keeps Ice Frozen: This ice maker stands out from the rest since it is also a functioning freezer so that no drain is required since your ice doesn't melt
  • Convenient Height: At 25 inches high, this unit fits well under your existing countertop and is also ADA compliant
  • Reversible Door: With a reversible door, the x-axis is your oyster -- choose a left or right door swing depending on your installation needs
  • We strongly recommend that you have this unit installed by a licensed professional
  • Manufacturer Warranty: 1 Year Parts, 90 Day Labor

Specifications:

  • Clear Ice: No
  • Defrost Type: Manual
  • Depth: 18-1/2"
  • Drain Required: No
  • Height: 25-3/16"
  • Hinging: Reversible
  • Reversible Door: Yes
  • Total Capacity: 6
  • Total Production: 12
  • Width: 15"

Dimensional Drawing:

Line Drawing

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Cutout Depth
18.75 in.
Cutout Height
25.38 in.
Cutout Width
15.44 in.
Daily Ice Production
12
Depth
18.5 in.
Depth with Door Open
19.9375 in.
Depth with Handles
19.9375 in.
Depth without Handles
18 in.
Height
25.1875 in.
Max Capacity (Pounds)
6 lbs.
Nominal Depth
19 in.
Nominal Height
26 in.
Nominal Width
15 in.
Product Weight
47.8 lbs.
Width
15 in.

Included Components

Ice Bin Included
Yes
Ice Maker
Yes

Characteristics and Features

Automatic Door Closer
No
Clear Ice
No
Counter Depth
Yes
Cube Style
Crescent
Door Features
Reversible Door
Door Swing
Reversible
Drain Required
No
Installation Type
Built-In, Free Standing, Undercounter
Panel Ready
No
Refrigerant
R-134a
Storage Features
Ice Bin
Theme
Contemporary, Modern

Electrical and Operational Information

Amperage
3.7
Voltage
115

Warranty and Product Information

ADA
Yes
Application
Ice Maker
Approved for Commercial Use
No
Energy Star
No
Manufacturer Warranty
1 Year Parts, 90 Day Labor
Quick Ship
Yes
