Item # bci3340040

The Kohler K-5296-7 has been discontinued

** See similar or replacement items below **

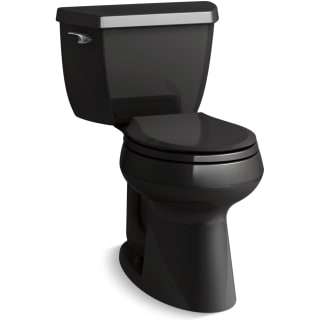

Kohler Highline Comfort Height 1.28 GPF Two-Piece Round Toilet with Class Five Flush Technology - Less Toilet Seat

Model: K-5296-7

Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

Product Features:

  • Two-piece configuration provides a classic look and allows for easier access to or around the toilet
  • Round bowl gives a classic look and feel
  • Covered under Kohler's one-year limited warranty
  • Constructed of vitreous china
  • Floor mounted three-bolt installation
  • Class Five flush technology helps keep bowl clean with a powerful flush and bowl rinsing
  • ADA compliant
  • Comfort Height - designed for ease of use, provides a higher seat
  • WaterSense certified - toilet uses 20% less water than the current standard while maintaining superior performance

Product Specifications:

  • Overall Height: 30-3/8" (measured from the bottom of the base to the highest point on the toilet)
  • Overall Length: 27-3/4" (measured from the back of the tank to the front of the rim)
  • Overall Width: 19-3/8" (measured from the furthest point on the left to the furthest on the right)
  • Bowl Height: 16-1/2" (measured from the bottom of the base to the rim)
  • Flow Rate: 1.28 GPF (gallons-per-flush)
  • Water Area: 10-1/2" x 8-1/4" (inner rim dimensions length x width)
  • Water Depth (from rim): 5-3/8"
  • Tank Width: 19-3/8" (measured from left most to right most points on tank)
  • Tank Length: 8" (measured from the back most to front most points on tank)
  • Trapway (Discharge Passageway) Size: 2-1/8"
  • Seat-mounting Holes: 5-1/2" (distance between toilet seat installation holes)
  • Rough-in: 12"




This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Bowl Height
16.5 in.
Depth
27.75 in.
Gallons Per Flush
1.28
Height
30.375 in.
Rough In
12 in.
Trapway
2.125 in.
Water Area
10.5 x 8.25
Width
19.375 in.

Included Components

Seat Included
No

Characteristics and Features

Bowl Shape
Round
Configuration
Two Piece
Design Features
Chair Height
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Traditional
Trip Lever Placement
Left
Water Efficient
Yes

Manufacturer Technology

Flush Technology
Class Five

Warranty and Product Information

ADA
Yes
CA Drought Compliant
Yes
Collection
Highline, Comfort Height
Manufacturer Warranty
1 Year Limited
TX Drought Compliant
Yes
WaterSense Certified
Yes
