Item # bci1350715

The Vigo VG6062PBCL40W has been discontinued

** See similar or replacement items below **

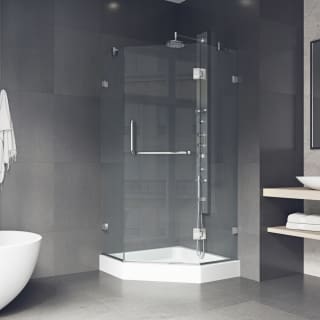

Vigo Piedmont 76-3/4" High x 40" Wide x 40-1/4" Deep Hinged Frameless Shower Enclosure with 3/8" Glass - Shower Pan Included

Model: VG6062PBCL40W

Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

VIGO™ VG606240W Shower Frame Features:

  • Covered under VIGO's™ limited lifetime residential or 1 year commercial warranty
  • Glass shower enclosures may be installed on custom tile bases or for a streamlined installation they may be combined with an acrylic shower base
  • Constructed of durable 3/8" thick tempered glass and complemented by stainless steel profiles
  • A frameless design gives a modern, sleek look to the shower
  • Pivot/Hinged shower door operation gives an impressive look to any shower unit and gives the feeling of more space as you utilize the shower

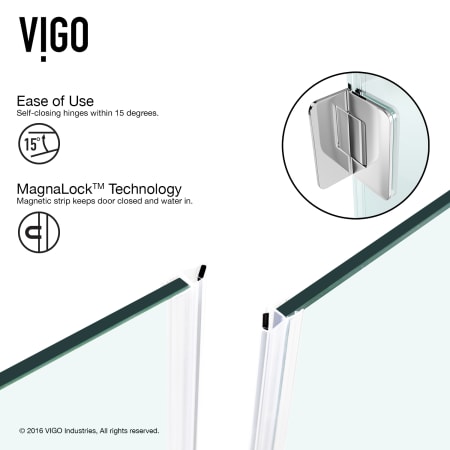

  • Full-length magnetic catch allowing for door adjustment and waterproof protection
  • Stylized towel bar for a completely different look
  • Clear PVC side gasket installs vertically onto door to ensure a water-tight seal between door and side panel when the door is in the closed position
  • Fixed arm support ensures wall anchoring and reinforces wall stability
  • Door opens to the left or right depending upon installation configuration
  • Discrete door handle mounted on pre drilled glass
  • All hardware required for installation of shower door is included

VIGO™ VG606240W Shower Tray Features:

  • Fiberglass reinforced acrylic construction with double threshold
  • Durable cross-linked cast acrylic shell is extremely scratch and stain resistant, yet renewable because the color goes all the way through the material
  • Non-porous surface makes cleaning and sanitizing faster and more effective
  • Multi-layered backing of thick fiberglass / resin encloses wood reinforcement to prevent flexing of floor pan
  • Pre-leveled with integral tile flange on 2 sides to facilitate installation
  • Textured bottom for extra safety
  • Standard 3-1/2" pre-drilled drain opening
  • Shower drain must be ordered separately

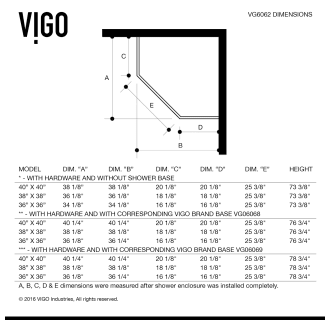

VIGO™ VG606240W Specifications:

  • Overall height: 76-3/4" (measured from bottom to top of enclosure)
  • Overall Width: 40" (measured from left to right of enclosure)
  • Overall Depth: 40-1/4" (measured from back to front of enclosure)
  • Maximum Door Opening: 24-9/16" (this is assuming door is not trimmed down)
  • Glass Thickness: 3/8"
  • Installation Type: Corner
  • Opening Direction: Reversible
  • Number of Panels: 3
  • Side Glass Panels: 19-1/2" W x 71-5/8" H, 19-5/16" W x 71-5/8" H
  • Shower Door Dimensions: 24-5/8" W x 70-3/4" H

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Manufacturer Resources

Dimensions and Measurements

Depth
40.25 in.
Door Width
24.625 in.
Glass Thickness
0.375 in.
Height
78.75 in.
Maximum Width
40.25 in.
Minimum Width
40.25 in.
Nominal Width
40 in.
Panel Width
19.3125, 19.5 in.
Product Weight
360 lbs.
Walk Through
24.5625 in.
Width
40.25 in.

Included Components

Base Included
Yes
Towel Bar Included
Yes

Characteristics and Features

Configuration
Shower Enclosure
Door Swing
Reversible, Left, Right
Door Type
Hinged
Frame Type
Frameless
Glass Features
Clear Glass
Installation Type
Corner
Material
Glass, Stainless Steel
Number Of Doors
1
Shape
Neo-Angle
Theme
Contemporary, Modern

Warranty and Product Information

ADA
No
ANSI Certification
Z97.1
Approved for Commercial Use
Yes
Certifications
UPC
Collection
Piedmont
Commercial Warranty
1 Year Limited
Country Of Origin
China
Manufacturer Warranty
Limited Lifetime
