Item # bci143977
The TOTO CST744S#01 has been discontinued
** See similar or replacement items below **

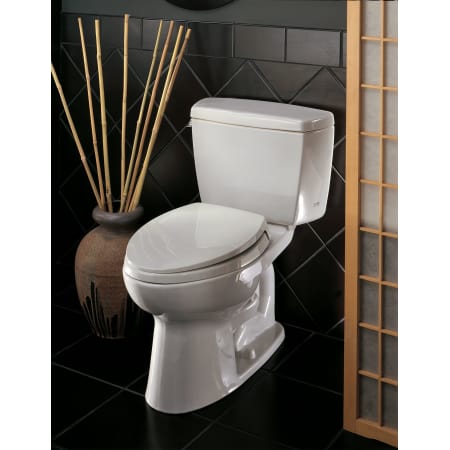

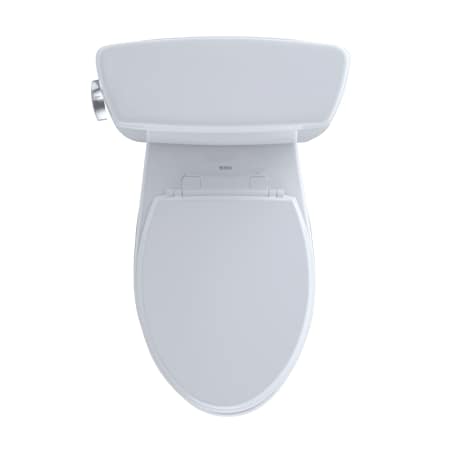

TOTO Drake 1.6 GPF Two Piece Elongated Toilet with G-Max Flush System - Less Seat
Model: CST744S#01
from the Drake Collection
Replacement for Discontinued Item
The TOTO CST744S has been replaced by: TOTO CST776CSG
We still have product details and accessories, scroll down to see them!
Product Overview
This product has additional required/recommended options. To configure, add to your cart.
- Toilet Seat Required
Product Features:
- Two-piece configuration allows for easier access to the area around the toilet
- Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
- Covered under Toto's 1 year limited warranty
- Sleek high profile two-piece design
- Made from vitreous china delivering strength and aesthetic appeal
- Floor mounted installation provides traditional appearance and simple mountability
- Toilet seat is not included - when adding to cart, options that fit this toilet will be presented
- G-max Double Cyclone flush system offers outstanding commercial grade performance with a powerful siphon jet flushing action
Product Specifications:
- Overall Height: 28-1/2" (measured from the bottom of the base to the highest point on the toilet)
- Overall Length: 28" (measured from the back of the tank to the front of the rim)
- Overall Width: 19-1/2" (measured from the furthest point on the left to the furthest on the right)
- Bowl Height: 14-5/8" (measured from the bottom of the base to the rim)
- Flow Rate: 1.6 gallons-per-flush
- Water Area: 10-1/4" x 8-1/2" (inner rim dimensions length X width)
- Trapway (Discharge Passageway) Size: 2-1/8"
- Distance Between Toilet Seat Installation Holes: 5-1/2"
Additional TOTO Links
This product is listed under the following manufacturer number(s):
- TOTO CST744S#03*
Bone - TOTO CST744S#11*
Colonial White - TOTO CST744S#01*
Cotton - TOTO CST744S#51*
Ebony - TOTO CST744S#04*
Gray - TOTO CST744S#12*
Sedona Beige
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Bowl Height
14.625 in.
Depth
28 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.6
Height
28.5 in.
Length
28 in.
Rough In
12 in.
Trapway
2.125 in.
Water Area
10.25 x 8.5
Width
19.5 in.
Included Components
Angle Supply Included
No
Seat Included
No
Characteristics and Features
Bowl Shape
Elongated
Configuration
Two Piece
Flush Type
Siphon Jet
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Traditional, Basic
Trip Lever Finish
Chrome
Trip Lever Placement
Left
Water Efficient
No
Manufacturer Technology
Flush Technology
G-Max
Warranty and Product Information
ADA
No
Approved for Commercial Use
Yes
CA Drought Compliant
No
Lead Leaching Certified NSF/ANSI 61
N/A (Regulation does not apply)
Manufacturer Warranty
1 Year Limited
TX Drought Compliant
No
WaterSense Certified
No
