Saniflo SANICOMPACT 48 Ounce, One-Piece Toilet With Macerator Built Into The Base

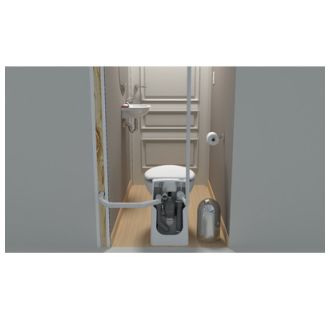

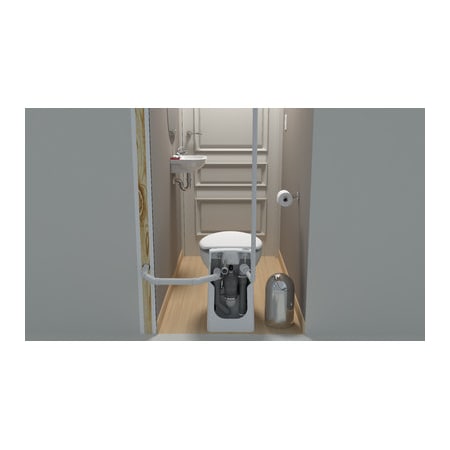

The SANICOMPACT is a self-contained toilet that’s ideal for fitting into tight spots where conventional toilets can’t fit. This upflush toilet capable of being installed anywhere in your house, including the basement.  This modern shaped self-contained macerating toilet is very water efficient, using just one gallon of water per flush. It was designed with several purposes in mind such as limited space, green conscious users that want to save water, and for people with physical limitations requiring easy access to a toilet. The SANICOMPACT can be installed in many locations such as a loft/attic, upper floor, ground floor, basement and even a garage. It’s very easy to install in areas such as under the stairway for a half bathroom or an additional half bathroom in a bedroom or garage conversion. It can handle the effluent from a toilet and sink. It needs no toilet tank as the flushing action and macerating pump cycle is automatic after pressing a push bottom (air switch) on top of the bowl. The flushing mechanism is electronically timed to allow approximately 1 gallon of water to pass through the toilet. The discharge elbow on the back of the SANICOMPACT can be rotated 360 degrees to fit any type of installation requirement. A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit. The SANICOMPACT is a forced main and does not need to be vented and connected to a vent stack. Other fixtures may need to be vented as per local plumbing codes. It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter circuit.

Product Features:

• One-piece configuration provides a uniform look and simplifies installation
• Round bowl is ideal for baths with limited space
• Covered under Saniflo's 2 year warranty
• Made from Vitreous China
• Floor Mounted
• Concealed trapway - provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view

Specifications:

• Overall Height: 18-1/2" (measured from the bottom of the base to the highest point on the toilet)
• Overall Length: 17-1/2" (measured from the back of the bowl to the front of the rim)
• Overall Width: 14-1/2" (measured from the furthest point on the left to the furthest on the right)
• Flow Rate: 1.28 gallons-per-flush
• Bowl Height: 15-3/4" (measured from the bottom of the base to the rim)
• Trapway (Discharge Passageway) Size: 1-1/4"
