Item # bci912413

The Little Giant 511543 has been discontinued

** See similar or replacement items below **

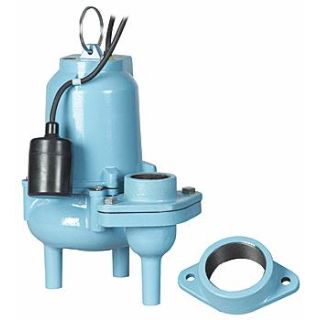

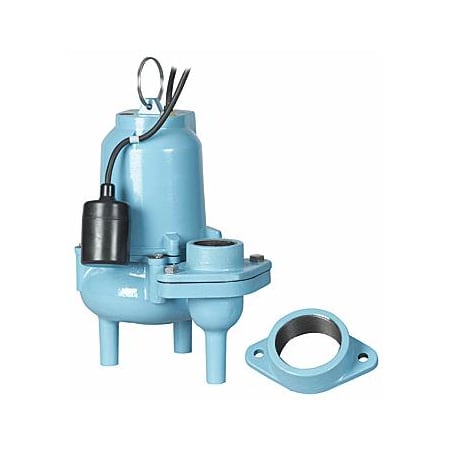

Little Giant 6/10 HP 155 GPM Energy Saver Submersible Sewage Pump with Piggyback Mechanical Float and 20ft. Cord

Model: 511543

Discontinued
    We still have product details and accessories, scroll down to see them!

    Product Overview

    6/10 HP 155 GPM Energy Saver Submersible Sewage Pump with Piggyback Mechanical Float

    The ES60 model pumps from Little Giant are energy-saving, high performance, fully submersible sewage/effluent/high-capacity sump pumps, designed for the professional plumbing contractor. The ES Series Pumps draw less energy while delivering greater pump flow and overall performance.

    • 6/10 HP permanent spilt capacitor motor with energy-saving low amp draw
    • Designed for continuous duty
    • Epoxy coated cast iron housing and volute
    • 2" FNPT (51 mm) discharge / 3" (76 mm) flange included
    • Carbon/ceramic shaft seal
    • Upper and lower ball bearings
    • Cast iron 2 vane non-clog impeller
    • Thermal overload protection
    • Piggyback Mechanical Float
    • Float On Level: 17.5" – 16.5"
    • Float Off Level: 10.5" – 9.5"
    • cCSAus listed

    This product is listed under the following manufacturer number(s):


    *Denotes a finish or option that has been discontinued.

    Dimensions and Measurements

    Cord Length
    240 in.
    Depth
    12 in.
    Discharge Diameter
    2, 3 in.
    Flow Rate at 10 Feet of Head
    127
    Flow Rate at 15 Feet of Head
    98
    Flow Rate at 20 Feet of Head
    70
    Flow Rate at 25 Feet of Head
    29
    Flow Rate at 5 Feet of Head
    155
    Height
    14.75 in.
    Maximum Diameter Solids
    2 in.
    Product Weight
    68 lbs.
    Shut Off Height
    28 in.
    Shut Off Pressure
    12.1
    Width
    10.8 in.

    Characteristics and Features

    Automatic
    Yes
    Configuration
    Submersible Pump
    Material
    Rubber, Steel
    Shutoff Head in Feet
    28
    Submersible
    Yes

    Electrical and Operational Information

    Amperage
    10.3
    Frequency
    60 Hertz
    Horsepower
    .6
    Voltage
    115

    Warranty and Product Information

    Certifications
    CSA
