Item # bci2879915
The Elkay LVRCDS has been discontinued
** See similar or replacement items below **

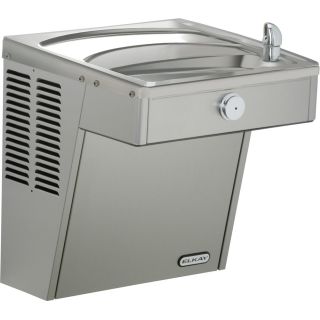

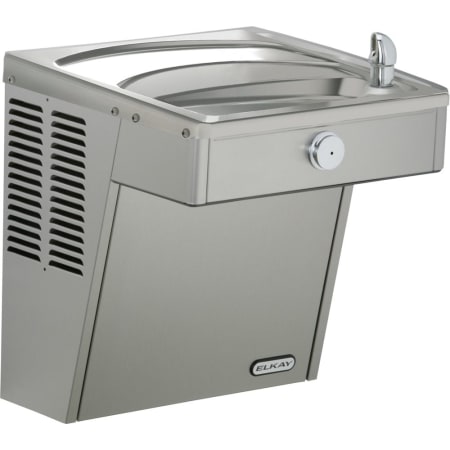

Elkay 18-1/16" Wall Mounted Single Station with Cooler - Vandal Resistant Bubbler
Model: LVRCDS
Discontinued
Product Overview
This product has additional required/recommended options. To configure, add to your cart.
- Accessory Recommended
- Mounting Kit Recommended
- Water Filter Recommended
Product Features:
- Covered under Elkay's 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
- Single station drinking fountain with self contained ADA cooler
- Integrated Silver Ion Anti-microbial Protection in key areas
- Vandal-resistant, easy to operate front push-button control
- Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Construction:
- Frame - Galvanized structural steel chassis supports refrigeration system and fastens to wall
- Contoured basin offers large area to minimize splashing when in use
- Vandal-Resistant bubbler is a heavy-duty chrome plated construction
- Stainless Steel Basin - One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
- Upper Shroud - Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners
- Lower Shroud - One piece easy to remove and replace. Allows access to internal components from three sides
Product Specifications:
- Base Flow Capacity (GPH): 8
- Rated Watts: 15
- Full Load Amps: 1
- Fountain Type: Non-Refrigerated
- Shipping Weight: 30
- Height: 20-5/8" (measured from lowest rim to top rim of fixture)
- Length: 18-1/16" (measured from most left to most right rim of fixture)
- Depth: 18-5/8" (measured from back to front of fixture)
- Glass Filler: No
- Vandal Resistant Bubbler: Yes
Additional Elkay Links
This product is listed under the following manufacturer number(s):
- Elkay LVRCDS*
Stainless Steel
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Flow Rate (GPM)
0.13
Height
20.625 in.
Inlet Diameter
0.375 in.
Length
18.0625 in.
Outlet Diameter
1.25 in.
Product Weight
30 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
20 PSI
Width
18.625 in.
Included Components
Bottle Filler Included
No
Cooling Unit
No
Characteristics and Features
Antimicrobial
Yes
Bi-Level
No
Control Type
Push Button
Filtered
Yes
Freeze Resistant
No
Installation Type
Wall Mounted
Material
Stainless Steel
Number of Stations
1
Pet Friendly
No
Theme
Modern
Vandal Resistant
Yes
Electrical and Operational Information
Amperage
1
Wattage
15
Warranty and Product Information
ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ANSI, ASME, UL
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
5 Year Limited
Outdoor Approved
No
