The Elkay LRAD292245MR2 has been discontinued
** See similar or replacement items below **
This product has additional required/recommended options. To configure, add to your cart.
- Basin Rack Recommended
- Basket Strainer Recommended
- Garbage Disposal Recommended
- Double basin sink with a 60/40 split provides increased versatility for any task
- Covered under limited lifetime residential
- Constructed of 18 gauge premium grade stainless steel - guaranteed to never rust or corrode
- Drop in installation is a quick and simple process
- Center drain location provides optimal drainage capability
Product Technologies / Benefits:
- Sound Deadening: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.

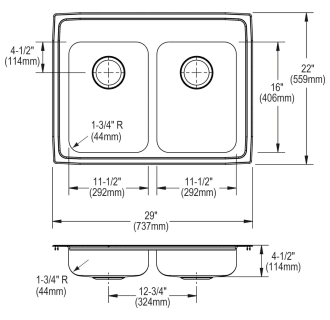

- Height: 4-1/2" (measured from the bottom of sink to the top of the rim)
- Overall Width: 22" (measured from the back outer rim to the front outer rim)
- Overall Length: 29" (measured from the left outer rim to the right outer rim)
- Basin Width: (measured from the back inner rim to the front inner rim)
- Left: 16"
- Right: 16"
- Basin Length: (measured from the left inner rim to the right inner rim)
- Left: 16"
- Right: 11-1/2"
- Basin Depth: (measured from the center of basin to the rim)
- Left: 4-3/8"
- Right: 4-3/8"
- Installation Type: Drop In
- Number of Faucet Holes: 1-5
- Drain Outlet Connection: 3-1/2"
- Minimum Base Cabinet Width: 33"
This product is listed under the following manufacturer number(s):
- Elkay LRAD292245MR2*
2 Faucet Holes (Middle Right)
- Elkay LRAD2922451*
Stainless Steel - 1 Faucet Hole
- Elkay LRAD2922452*
Stainless Steel - 2 Faucet Holes
- Elkay LRAD2922453*
Stainless Steel - 3 Faucet Holes
- Elkay LRAD2922454*
Stainless Steel - 4 Faucet Holes
- Elkay LRAD2922455*
Stainless Steel - 5 Faucet Holes
*Denotes a finish or option that has been discontinued.
Dimensions and Measurements
Characteristics and Features
Warranty and Product Information
Do It Yourself: Replacing or Installing a Kitchen Sink
Changing out your old kitchen sink for a new one can seem like a very difficult do-it-yourself job. However, it does not have to be! Follow Milan Rosan of Build.com as he shows you the step-by-step process of replacing and installing your kitchen sink in your home.
