Item # bci3219306

The Design House 742569 has been discontinued

** See similar or replacement items below **

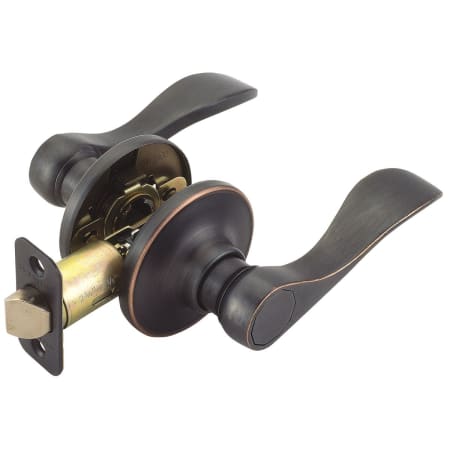

Design House Pro Springdale Passage Door Lever Set with Radius Corner Latch Faceplate

Model: 742569

from the Pro Springdale Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

passage-functionPassage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

  • Certified as ANSI/BHMA Grade 3 for residential security
  • All metal construction for durability and premium feel
  • Reversible handing installs easily on right or left handed doors
  • Packaged with a round corner latch faceplate
  • Does not comply with the Americans with Disabilities Act (ADA)
  • Design House provides a Limited Lifetime Mechanical and 5 Year Finish Warranty

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handing: Reversible, Left, Right
  • Rose Diameter: 2-5/8"
  • Projection: 1-15/16"
  • Product Weight: 1.61 lbs
  • Material: Zinc
  • Latch Faceplate: Round Corner

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-3/4", 1-5/8", 1-3/8", 1-1/2"
Edge Bore
1"
Handle Projection
1.9375 in.
Product Weight
1.61 lbs.
Trim Height
2.625 in.
Trim Width
2.625 in.

Included Components

28 Degree Latch
No

Characteristics and Features

Function
Passage
Handing
Left, Right, Reversible
Handle Material
Metal
Latch Faceplate
Round Corner
Lever Shape
Wave
Material
Zinc
Rosette Shape
Round
Shape
Wave
Theme
Modern

Warranty and Product Information

ADA
No
ANSI Certification
A156.2
Approved for Commercial Use
No
BHMA Certification
Grade 3
Collection
Pro Springdale
Manufacturer Warranty
Limited Lifetime Mechanical, 5 Year Finish
