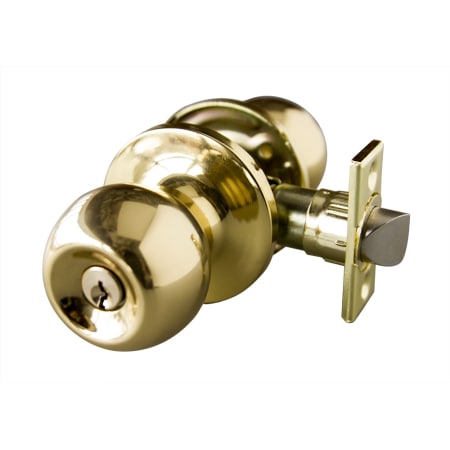

Design House Bay Reversible Keyed Entry Door Knob Set with 6-Way Latch

Model: 727016

Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

Product Features:

  • Entry Knob accepts a key on one side of the lock and is operated by a turn-button knob on the other side
  • Designed for left or right hand doors, this knob fits the two most common backsets in the U.S. (2-3/4" and 2-3/8").
  • Entry knobs are often used on front doors and back doors.
  • Use this knob on standard 1-3/8" and 1-3/4" thick doors.
  • Cross bore 2-1/8" diameter or edge bore 1-1/16" diameter (1" x 2-1/4" radius corner faceplate).
  • This unit features anti-bump pins as an added security measure to keep your door securely shut when locked.
  • This product is ANSI Grade-3 certified, which means this knob is rated for residential security.
  • KW1 Keyway with entry lock KA3 - 3 keyed alike per cut case.
  • Entry Knob comes with a limited lifetime mechanical and 5-year finish warranty.

Specifications:

  • Height: 9-15/32"
  • Length: 2-9/10"
  • Width: 7-1/2"
  • Handing: Reversible
  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1-1/16"
  • Latch Faceplate: Round Corner
  • Door Thickness: 1-3/8" or 1-3/4"
  • Cylinder: 5 Pin
  • Application: Keyed Entry
  • ADA: No
  • ANSI Certification: Yes
  • Handle Style: Knob
  • ANSI Approved: Yes
  • Number of Keys: 3
  • Product Class: Residential

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4", 2-3/8"
Door Thickness
1-3/4", 1-3/8"

Characteristics and Features

Cylinder
5 Pin
Function
Keyed Entry
Handing
Reversible, Right, Left
Keyway
KW1
Latch Faceplate
Round Corner
Number of Keys
3
Rosette Shape
Round
Theme
Transitional

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 3
Manufacturer Warranty
5 Year Finish, Limited Lifetime
